Configure Kiosk Display

Virtual Keyboard

The Kiosk Client application is compatible with touch screen displays. When a physical keyboard is not attached to the system, a virtual keyboard must be used to type text into the application.

Windows has two virtual keyboards. The On-Screen Keyboard (OSK) from Accessibility and the Touch keyboard from Typing settings. Applications like the Smart Check-In Kiosk that has input fields for typing information into the screen, rely on the Touch keyboard that automatically pops-up when a user presses an edit control using the touch screen. The Touch keyboard is preferred since it is dismissed automatically when other areas of the screen are touched.

Enabling the Touch Keyboard with Windows 10

To turn on the Virtual Keyboard popup for Kiosk input controls and apps such as the Chrome browser on a Windows 10 based touch screen display, do the following:

  1. Click the Start button.

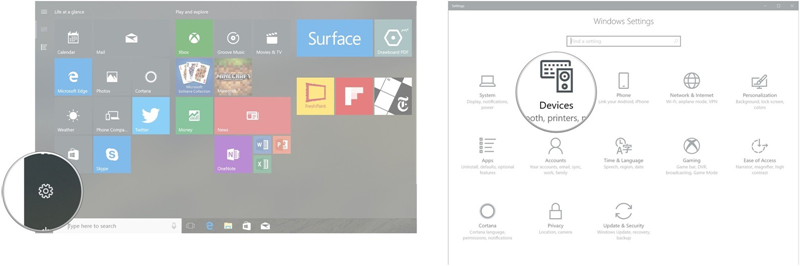

  2. Click the Settings button. It looks like a gear.
  3. Click Devices. //

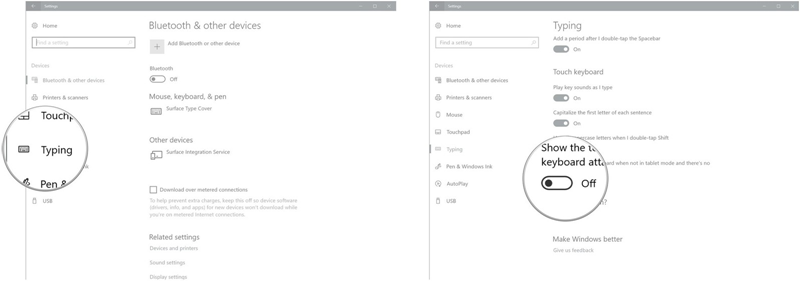

  4. Click Typing.
  5. Click the switch below Show the touch keyboard when not in tablet mode and there's no keyboard attached so that it turns on. //

A touch keyboard will now appear when you click a field that accepts typing and your PC senses no physical keyboard is attached.

Enabling the Touch Keyboard with Windows 11

  1. Click In Windows Start Taskbar icon

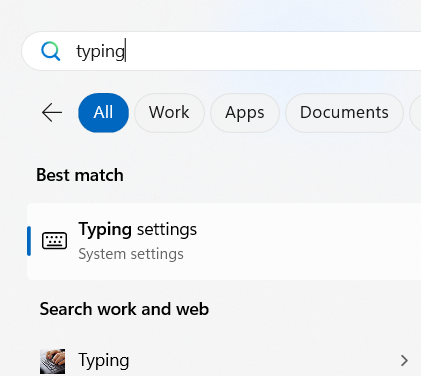

  2. Type “typing” and select Typing settings //

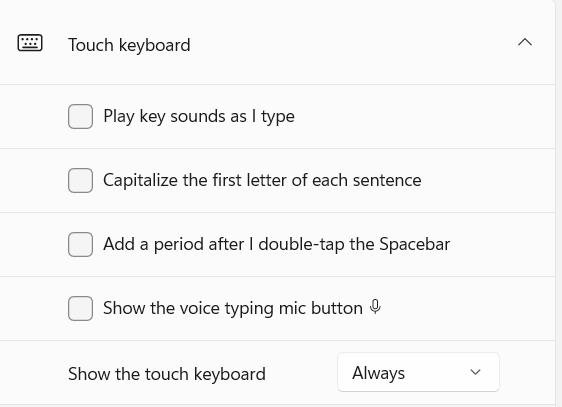

  3. Set “Show the touch keyboard” to “Always”. Optionally uncheck all other keyboard options. //

A touch keyboard will now appear when you press a field that accepts typing.

Limitations of Windows 11 Touch Keyboard

Here are the recommended Windows settings for best display of Windows 11 Touch keyboard with the Smart Check-In application. Any other resolution or scale may result in undesired user experience.

  1. System > display   scale & layout   Scale = 100%
  2. System > display   scale & layout   Display resolution = 1080 x 1920
  3. System > display   scale & layout   Display orientation = Portrait mode

Issues/Limitations

  1. Touch keyboard shows “settings” & “emoji” icons on top left side; “compact keyboard” on top right side which allow user to modify keyboards setting and display.
  2. Touch keyboard shows clipboard contents.
  3. The touch keyboard has an undock button which allows the keyboard to float or be moved around the screen. The previous guest’s positioning is retained when the next guest uses Smart Check-In.
  4. The touch keyboard may block some buttons on the lower bottom of kiosk client. Users may not see the buttons on the Kiosk page.
  5. When on the Retrieve Booking page, the “Next” button is blocked by the Touch keyboard. The guest has to press Enter key on touch keyboard or scroll page up to see the Next button after typing in related info to advance to the next screen.
